Pixel Pitch | 2.6mm | 2.9mm | 3.9mm |
LED Configuration | SMD2121 | SMD2121 | SMD2121 |
Application | Indoor | Indoor | Indoor |
Pixel Density/sqm | 147456dots | 112896 dots | 65536 dots |
Module Size/mm | 250 x 250 | 250 x 250 | 250 x 250 |
Module Resolution | 96x 96 dots | 84x 84 dots | 64 x 64 dots |
Cabinet Size | 500x1000mm | 500x1000mm | 500x1000mm |
Cabinet Resolution | 192 x 384 dots | 168x 336dots | 128 x 256 dots |
Cabinet Weight | 12.5Kg | 12.5Kg | 12.5Kg |
IP Rating | IP31 | IP31 | IP45 |
Scan | 1/32S | 1/28S | 1/16S |
Brightness /sqm | 1000 nits | 1000 nits | 1200 nits |
View Angle/° | 160°/ 140°(H/V) | 160°/ 140°(H/V) | 160°/ 140°(H/V) |
Gray Scale/bit | 16 bit | 16 bit | 16 bit |
Max. Power Consumption/W | 640 W/sqm | 640 W/sqm | 640 W/sqm |
Ave. Power Consumption/W | 192 W/sqm | 192 W/sqm | 192 W/sqm |
Refresh Frequency/Hz | 3840 Hz | 3840 Hz | 3840 Hz |
Operating Power | AC 96~242V 50/60Hz | ||
Operating Temperature | -40℃~+60℃ | ||
Operating Humidity | 10~90%RH | ||
Operating Life | 100,000Hours |
Characteristic
1.15 Seconds To Replace A Module,10 seconds to replace a central unit, which can effectively solve major issues on site.
2.High Gray Scale & HDR Processing Technology 4K HDR, 24 bits high grayscale
3.Die-Cast Magnesium Design The die-cast magnesium cabinet weights only 6.3kg, 30% lighter than average

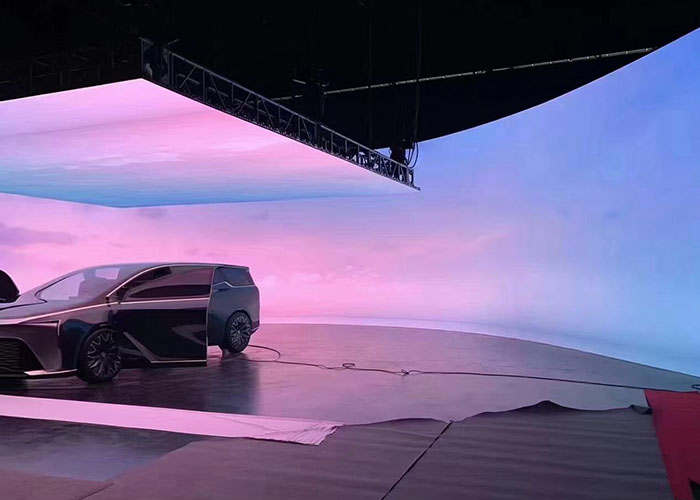

4.Rental screens are perfect for professionals taking part in congresses or exhibitions, who need easy to assemble, lightweight screens that are therefore easily transportable from one location to another .
5.has four corner protectors in each corner to prevent LED to be damaged,more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.
MPLED—Your reliable LED Display partner. Trust brand,Trust MPLED
1. 15+ years R&D experience team support
2. 8years manufacturer experience
3.10 international professional engineer support
4. 8line production line
5. 300+ skilled work
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
